2.50mm Connector Housings and Headers (1x4) JST-XH compatible

Below you'll find 2.50mm female housings, male straight headers, and male right angle headers in 1x4 format. This family of connectors are compatible with the JST-XH style. These connectors can be found on many brands of lithium-polymer batteries and their charging packs. Please note: Only the 2.50mm JST-XH style female terminals will fit these housings.

Connectors (PDF)
  • 10pcs for $1.68

  • 100pcs for $9.24

  • 300pcs for $19.41

  • 1,000pcs for $55.47

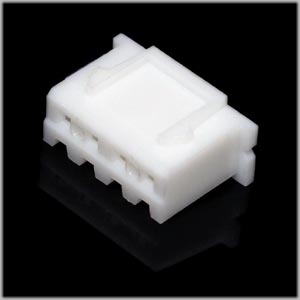

2.50mm Female Housing (1x4)

1x4 2.50mm JST-XH compatible housing. This 1x4 connector can be found on Electrifly's 600mAh, 950mAh, and 2200mAh packs, as well as Turnigy's 1600mAh and 2200 mAh. It can also be found on the battery packs for E-Flite's 300X and 450 3D helicopters. Use with our 2.50mm JST-XH style female terminals.

Enlarged Image
1 2
3 4
  • 10pcs for $1.98

  • 100pcs for $10.91

  • 300pcs for $22.90

  • 1,000pcs for $65.43

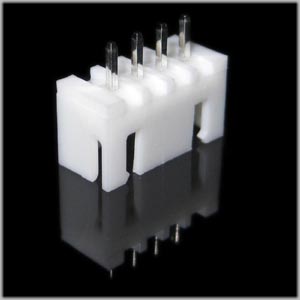

2.50mm Male Straight Header (1x4)

This male header accepts the female housing above. It has straight legs for a vertical mount on a circuit board. Use the "add to cart" buttons immediately to the right to purchase this item.

Enlarged Image
1 2
3
  • 10pcs for $2.08

  • 100pcs for $11.47

  • 300pcs for $24.08

  • 1,000pcs for $68.80

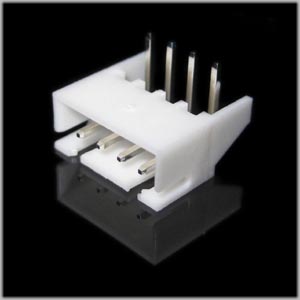

2.50mm Male Right Angle Header (1x4)

This male header accepts the female housing above. It has right angle legs for a horizontal mount on a circuit board. You can also solder wires to the legs (be sure to use proper strain relief on your solder joints). Use the "add to cart" buttons immediately to the right to purchase this item.

Enlarged Image
1 2
3
